实验箱简介

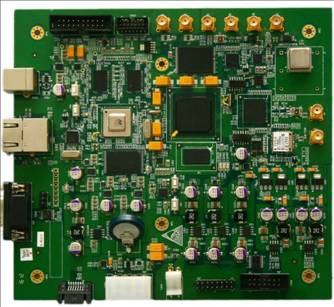

信号采集回放开发板

产品型号：WS-INBRD-001

平台简介：
硬件平台采用FPGA+CPU的架构，通过高性能可配置AD/DA完成对信号的采集与回放功能。平台CPU采用Marvell的88F6282高性能处理器控制各个接口的运行状态。

硬件配置：
FPGA: Xilinx Spartan-6
●Gate：74,637个可编程逻辑单元
●3,096Kb Block RAM Blocks
●132个DSP48A
1Gb DDR3 SDRAM
Marvell 88F6282处理器
●High-performance single-issue CPU
●1.6 GHZ, 1.8GHz, and 2.0 GHz operating speed
●16KB-Instruction and 16KB-Data 4-way, set-associative L1 cache
●256KB unified 4-way, set-associative L2 cache
●16-bit DDR2/3 memory interface (up to 1066 MHz data rate)
●Two Gigabit Ethernet MACs with interface options
●Audio Video Bridging
●Two PCI-Express ports
●Single USB 2.0 port with integrated PHY
●Two SATA 2.0 ports with integrated PHYs
●LCD controller supporting up to 1080p and UXGA resolutions
●Network security engine with various encryption algorithm support
●Audio and MPEG Transport Stream Interface
●Two TDM Channels, SDIO/MMC, NAND flash, SPI, two TWSI, and two UART interfaces
●DMA/XOR engine with four channels
●RTC and Thermal sensor
●Compact Package (15 x 15mm FCBGA)
        1Gb DDR3 SDRAM
ADC模块：
●输出最高分辨率：9bit
●采样率：160M
●ADC最大带宽：60M
DAC模块：
●输出最高分辨率：10bit
●带外杂散：>70dBc
●带内杂散：>80dBc
接口：
●RS232串口
●USB口
●网口
●SATA接口
